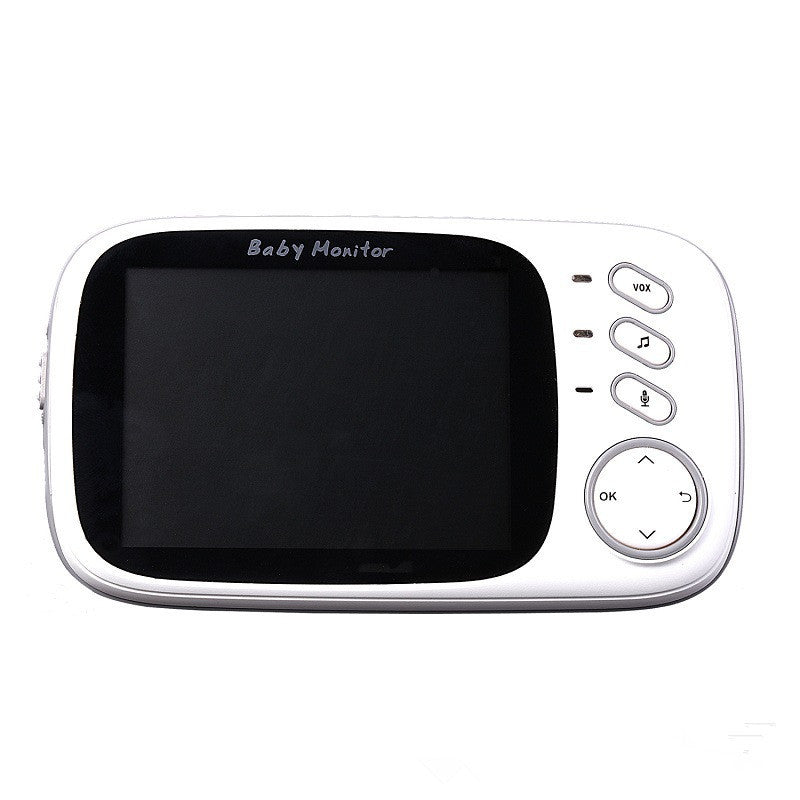

Display
LCD size: 3.2"
Supported resolution: 220×176
Receiving sensitivity: -90dBm work
Current consumption (maximum): 150 mA
Battery: Lithium polymer/750mAh
Power supply: 5V/500mA DC

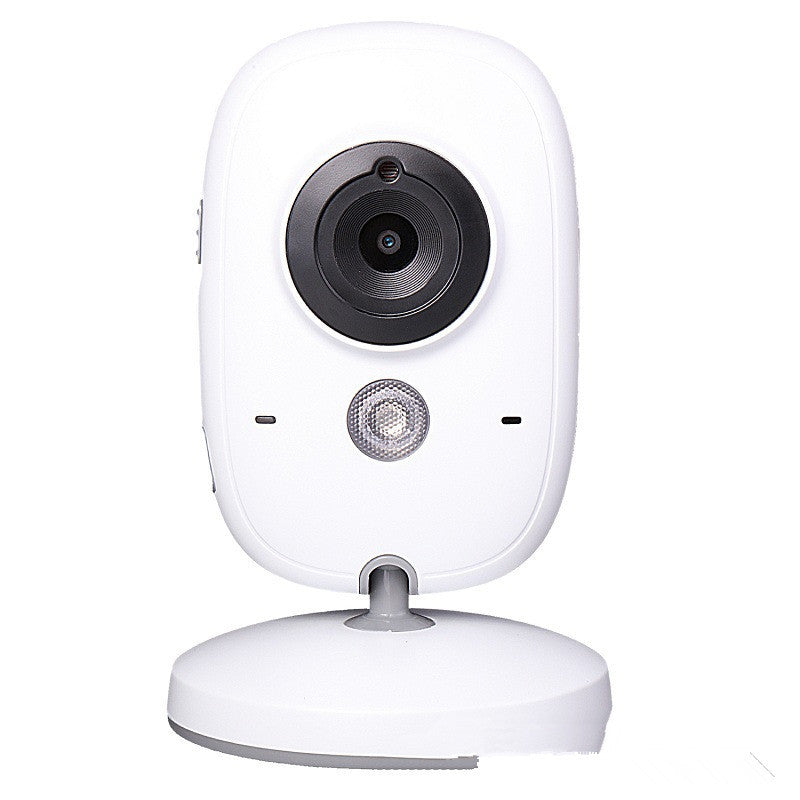

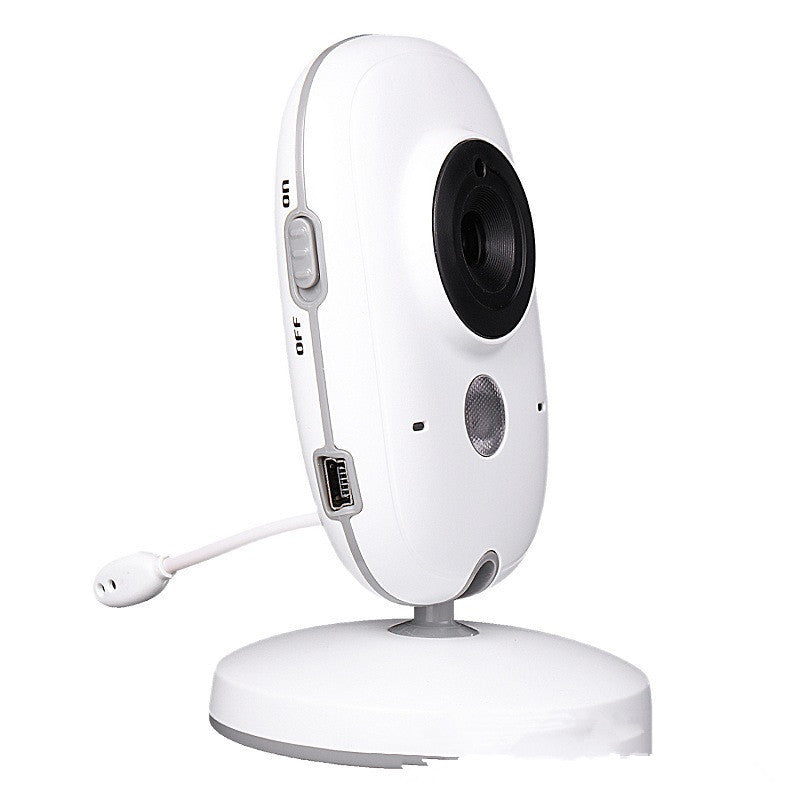

Camera
Image sensor: CMOS
Total picture pixels: 320×240pxl
Minimum illumination: 0 Lux (when the infrared light is turned on)
Night vision distance: 15 feet (5 meters)
Viewing angle: 55°
Power consumption (maximum): 100 mA
Power supply: 5V/500mA DC
table of Contents

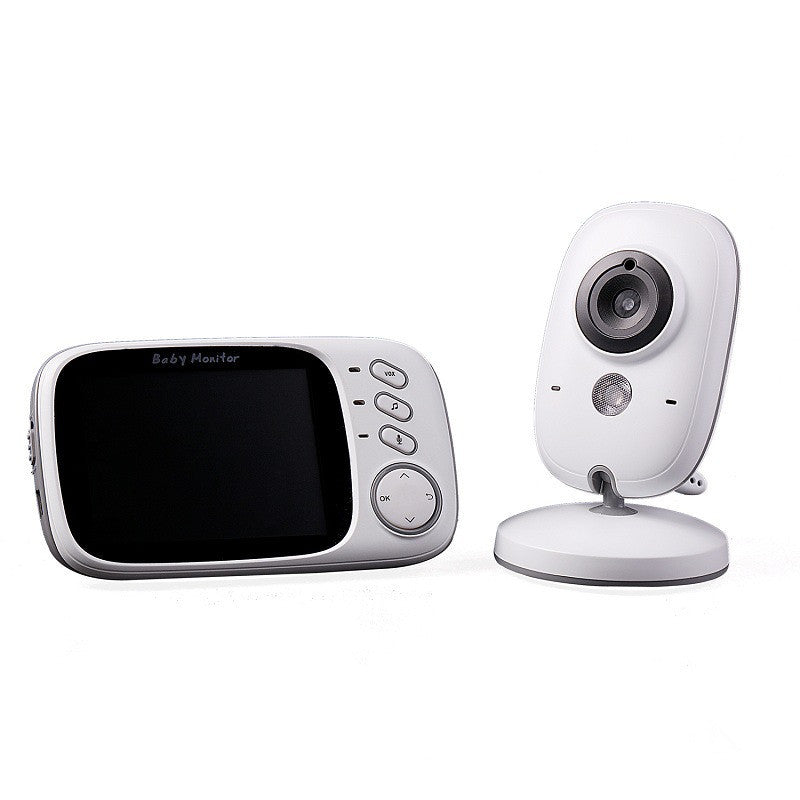

1×3.2" receiving display
1 camera
2 x power adapter
1 x user manual
General
Transmission frequency: ISM2400~2483.5 MHz
Transmit power: 17dBm
Transmission distance: 160ft/50m indoor/850ft/260m outdoor, line of sight
Spread spectrum: AFH and TDMA
Modulation mode: GFSK
Tempurature of work: 14?122 degrees Fahrenheit /-10? +50 degrees Celsius
Features
l Worry-free portable monitoring
l Two-way (talk back)
l Temperature monitoring
l Built-in 8 lullabies in the camera
l Automatic night vision
l Safe, no interference, long-distance digital signal
l High contrast 3.2" color LCD monitor
l Long battery life (5 hours Vox mode)
Packing size: 185*148*70 (mm)
